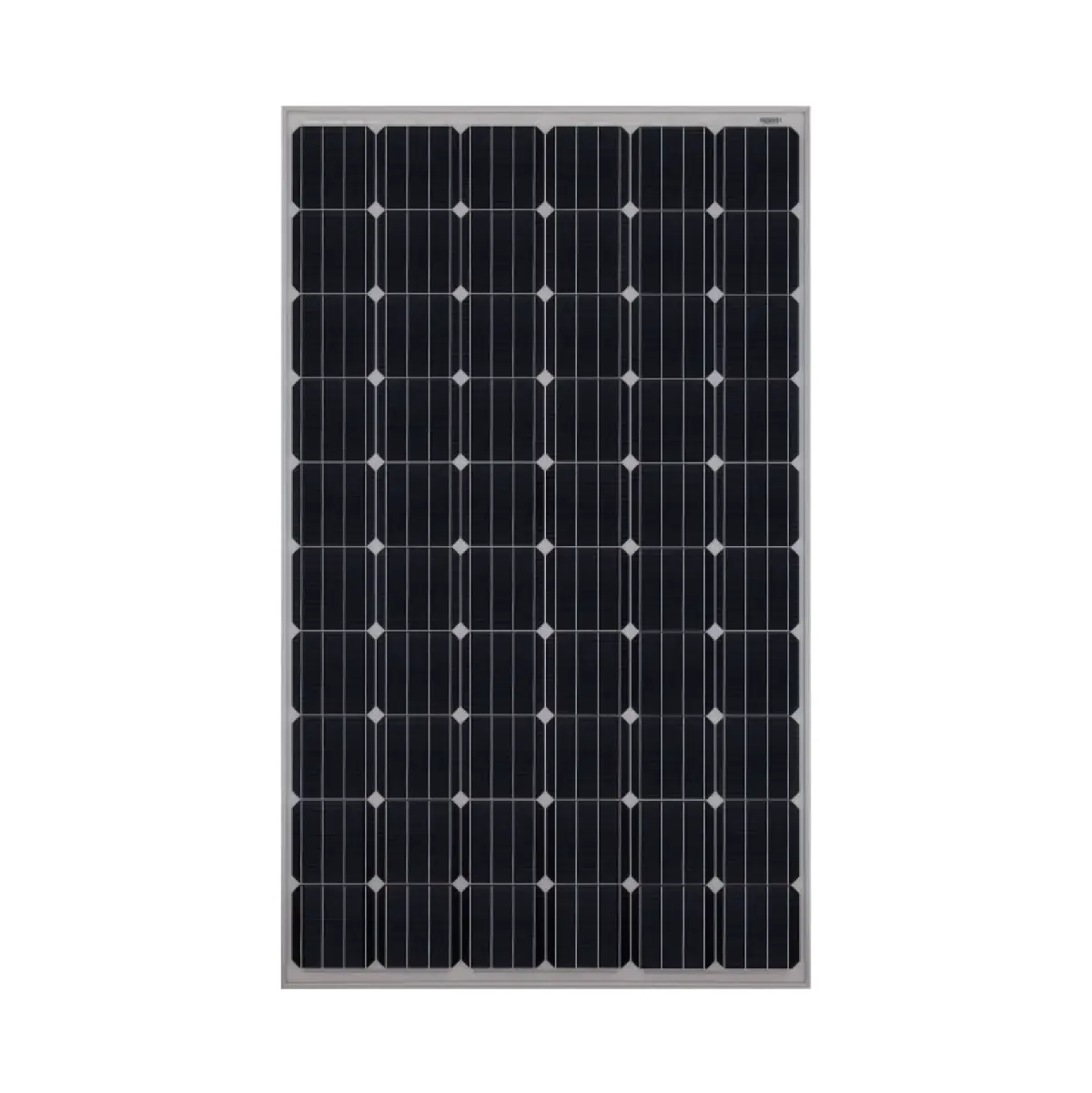

JA 600W N Type Bifacial

Key Features
  • Higher power generation better LCOE
  • n-type with very Lower LID
  • Better Temperature Coefficient
  • Better low irradiance response
Warranty
  • 12-year product warranty
  • 30-year linear power output warranty
Category : Brand:

Additional information

Electrical Parameters At STC



TypeJAM66D45595/LBJAM66D45600/LBJAM66D45605/LBJAM66D45610/LBJAM66D45615/LBJAM66D45620/LB
Rated Maximum Power (Pmax) [W]595600605610615620
Open Circuit Voltage (Voc) [V]47.5047.7047.9048.1048.3048.50
Maximum Power Voltage (Vmp) [V]39.2739.4439.6039.7739.9640.21
Short Circuit Current (Isc) [A]15.9015.9516.0016.0516.1016.13
Maximum Power Current (Imp) [A]15.1515.2115.2815.3415.3915.42
Module Efficiency [%]22.022.222.422.622.823.0
Power Tolerance0~+3%
Temperature Coefficient of Isc (a_Isc)+0.045%/°C
Temperature Coefficient of Voc (B_Voc)-0.250%/°C
Temperature Coefficient of Pmax (y_Pmp)-0.290%/°C
STCIrradiance 1000W/m², cell temperature 25°C, AM1.5G
