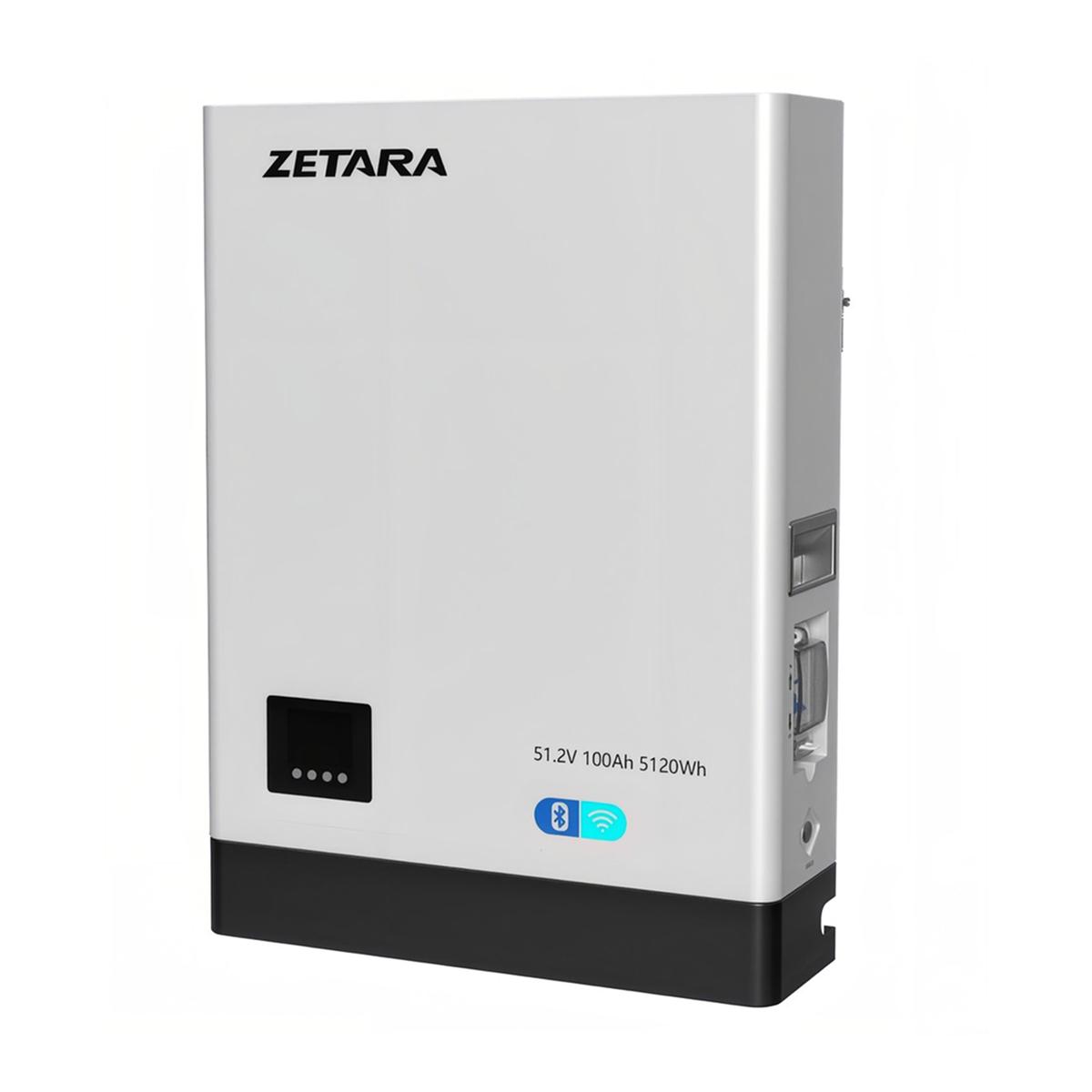

The ZETARA ZRLVESS5KW-IP20 is a wall-mounted LiFePO4 battery system designed for low-voltage, small and medium-sized energy storage applications. It integrates lithium iron phosphate cells with a high-precision Battery Management System (BMS) that monitors battery voltage, current, and temperature in real time while providing battery protection and passive cell balancing. 3060160149-Wall-mounted Series …
The modular design allows multiple battery modules to operate together for expandable energy-storage capacity. The battery supports CAN and RS485 communication, allowing communication with compatible external equipment and inverters. The system also provides SOC and operating-status indication for convenient monitoring. 3060160149-Wall-mounted Series …
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZRLVESS5KW-IP20 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5120Wh / 5.12kWh |
| Dimensions | 440 × 580 × 155 mm |
| Weight | 46 kg |
| Battery Management | Built-in high-precision BMS |
| Monitoring | Voltage, Current & Temperature |
| Communication | CAN / RS485 |
| Status Monitoring | SOC, RUN & Alarm Indicators |
| Installation | Wall-mounted |
| Application | Low-voltage energy storage systems |
