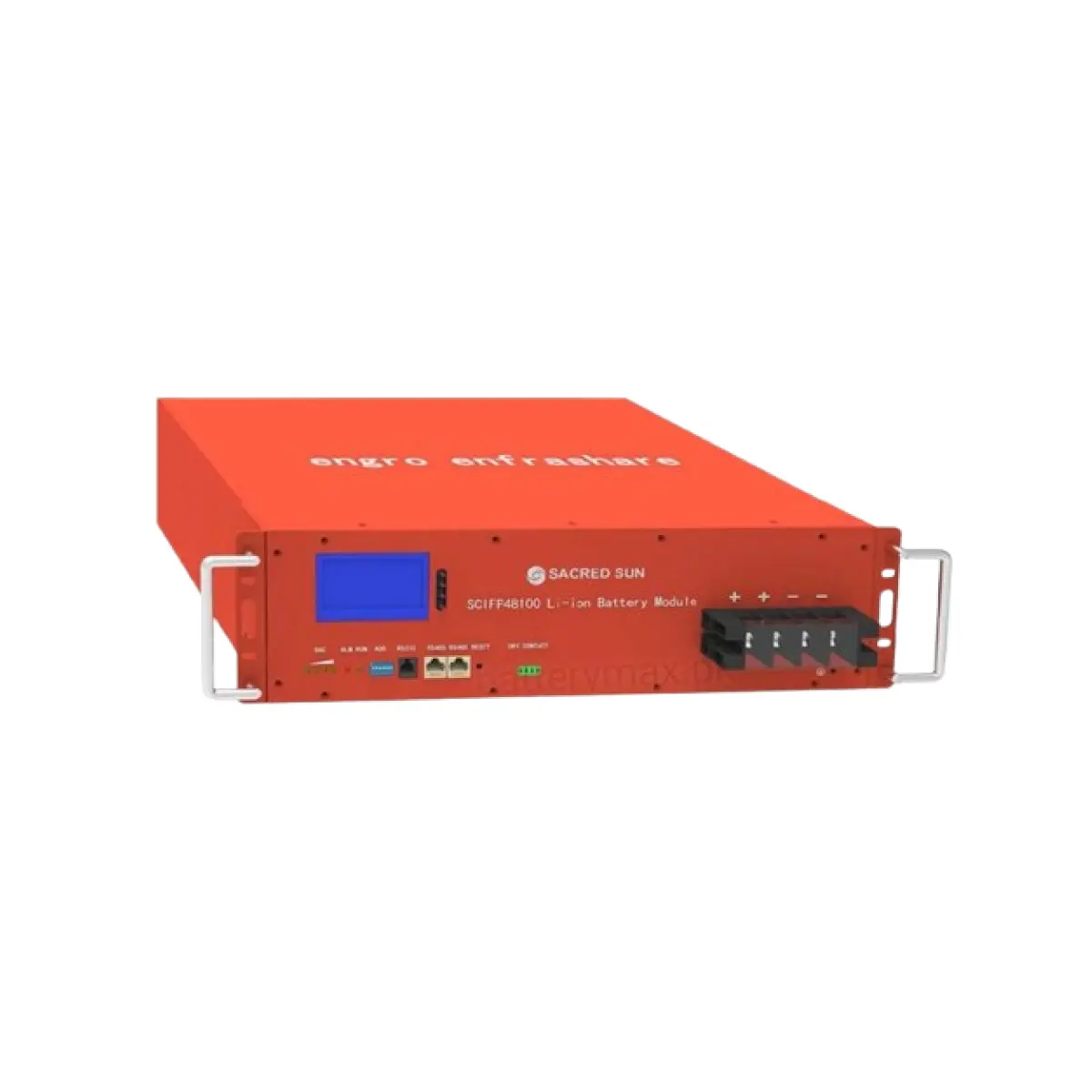

Sacredsun 48V100Ah with LCD

Currently not available (as of 19 November 2026). Pylontech high-voltage batteries and Growatt lithium batteries are available as alternatives. WhatsApp us for an alternative.

SCIFP48100, a powerful 48V LiFePO4 battery product, has been especially designed to provide power backup for remote or outdoor telecom sites, off-grid, on-grid, and household usage energy storage systems. Its modular design enables parallel installation meeting also the need for larger power backup.

Benefits
  •  Increased energy in a given space
  • Easy installation and upscaling
  • High operational reliability
  • Optimized supervision strategy through remote control/diagnostic
  • Excellent long life time
  • Built-in intelligent BMS to protect the battery pack at any time and
    prolong its service life
Category : Brand:

Additional information

Mechanical Specifications
Nominal Characteristics
Battery ModelSCIFP48100
Nominal Voltage48V
Typical Capacity100Ah (25℃, 0.2C)
Typical Energy4800 Wh
Volumetric Energy Density186.4 Wh/dm³
Gravimetric Energy Density117.0 Wh/kg
DimensionsWidth, Height, Depth440mm, 133mm(3U), 440mm
Reference Weight41.0K g
Electrical Characteristics
Voltage Window40.5~54.0V
Charge Voltage Range52.5~54.0V
Max. Permanent Discharge Current100A
Max. Permanent Charge Current100A
Faradic Charge Efficiency99% (+20°C)
Energy Charge Efficiency94% (+20°C)
Communication Interface (optional feature)Modbus/SNMP/TACP
Additional Features (optional feature)LCD Display
Operation Environment
Charge Temperature0°C to +55°C
Discharge Temperature-20°C to +60°C
Storage Temperature–20°C to +60°C
Protection ClassIP20
